Fichas Tecnicas:
Wafer disco GGG-40
Wafer disco SS316
Wafer disco SS431
Hoja de medidas
|
|

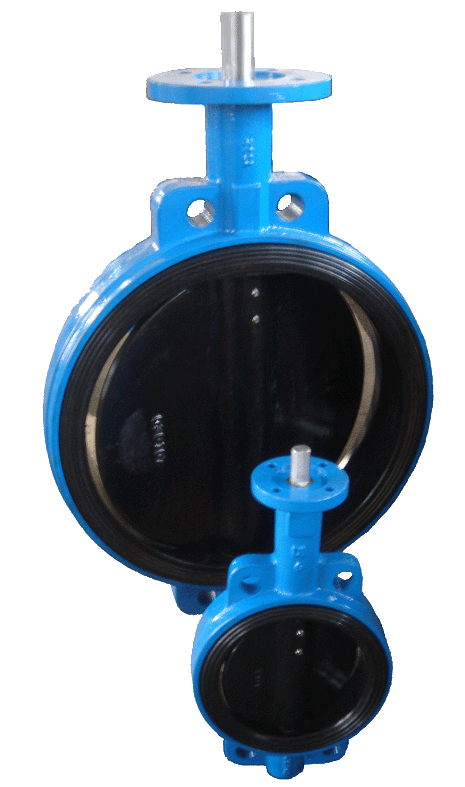

De fundición dúctil GGG-40 con estructura Wafer o Lug.
DN40 a DN700. Para diámetros superiores ver embridadas.
PN10/16 o 20.
Accionamiento Palanca, Reductor o Motorizado |
|
| |

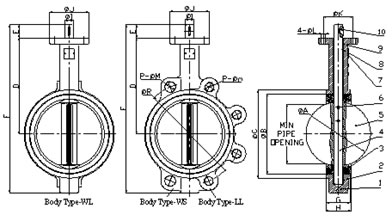

| Nº |
Partes |
| 1 |
Cuerpo F. Ductil GGG-40 |
| 2 |
Casquillo rozam. |
| 3 |
Goma EPDM |
| 4 |
Eje inf. SS416 |
| 5 |
Disco FD o SS |
| 6 |
Pin (s/modelo) |
| 7 |
Eje sup. SS416 |
| 8 |
Junta tórica |
| 9 |
Placa identifi. |
| 10 |
Ajuste Pal./Red. |
|
|
| |
Valve Size |
DN |
A |
Min. |
B |
C |
D |
E |
F |
Long Neck |
Short Neck |
Long Neck |
Short Neck |
1 1/2 |
40 |
12.5 |
24.0 |
70.0 |
84 |
150 |
100 |
32 |
252 |
212 |
2 |
50 |
52.9 |
32.3 |
76.3 |
89 |
161 |
100 |
32 |
273 |
212 |
2 1/2 |
65 |
64.5 |
46.1 |
89.0 |
108 |
175 |
113 |
32 |
296 |
234 |
3 |
80 |
78.8 |
64.4 |
103.9 |
120 |
181 |
124 |
32 |
308 |
251 |
4 |
100 |
104.0 |
86.3 |
135.0 |
150 |
200 |
152 |
32 |
346 |
298 |
5 |
125 |
123.3 |
110.6 |
159.0 |
181 |
213 |
152 |
32 |
372 |
311 |
6 |
150 |
155.6 |
134.8 |
188.4 |
208 |
226 |
165 |
32 |
397 |
336 |
8 |
200 |
202.5 |
192.4 |
238.1 |
260 |
260 |
205 |
45 |
480 |
425 |
10 |
250 |
250.5 |
241.7 |
292.4 |
320 |
292 |
253 |
45 |
540 |
495 |
12 |
300 |
301.6 |
291.8 |
344.1 |
375 |
337 |
277 |
45 |
624 |
564 |
|
|
| |
Valve Size |
DN |
G |
H |
I |
J |
K |
L |
P |
m |
M |
R |
1 1/2 |
40 |
33.0 |
35.0 |
12.6 |
77 |
50 |
7 |
4 |
M16 |
19 |
110 |
2 |
50 |
42.0 |
45.0 |
12.6 |
77 |
50 |
7 |
4 |
M16 |
19 |
125 |
2 1/2 |
65 |
44.7 |
47.6 |
12.6 |
77 |
50 |
7 |
4 |
M16 |
19 |
145 |
3 |
80 |
45.2 |
49.0 |
12.6 |
77 |
50 |
7 |
8 |
M16 |
19 |
160 |
4 |
100 |
52.1 |
54.7 |
15.8 |
92 |
70 |
10 |
8 |
M16 |
19 |
180 |
5 |
125 |
54.4 |
58.0 |
18.9 |
92 |
70 |
10 |
8 |
M16 |
19 |
210 |
6 |
150 |
55.8 |
58.6 |
18.9 |
92 |
70 |
10 |
8 |
M20 |
23 |
240 |
8 |
200 |
60.6 |
63.4 |
22.1 |
125 |
102 |
12 |
8 |
M20 |
23 |
295 |
10 |
250 |
65.6 |
70.0 |
28.5 |
125 |
102 |
12 |
12 |
M20 |
23 |
350 |
12 |
300 |
76.9 |
80.1 |
31.6 |
140 |
102 |
12 |
12 |
M20 |
23 |
400 |
|
|
| |
 |
|
|
| |
Valve Size |
A |
Min |
B |
C |
D |
E |
Inch |
DN |
PN10 |
PN16 |
PN20 |
14 |
350 |
333.3 |
322.0 |
375.1 |
405 |
368 |
45.0 |
45.0 |
45.0 |
16 |
400 |
389.6 |
379.1 |
439.5 |
470 |
400 |
51.2 |
72.0 |
72.0 |
18 |
450 |
440.5 |
426.8 |
490.5 |
521 |
422 |
51.2 |
72.0 |
72.0 |
20 |
500 |
491.6 |
472.7 |
535.4 |
565 |
480 |
64.2 |
82.0 |
82.0 |
24 |
600 |
592.5 |
571.6 |
654.0 |
693 |
562 |
70.2 |
82.0 |
82.0 |
Valve Size |
F |
G |
H |
I |
Inch |
DN |
PN10 |
PN16 |
PN20 |
PN10 |
PN16 |
PN20 |
14 |
350 |
680.0 |
680.0 |
680.0 |
76.5 |
79.5 |
31.6 |
31.6 |
42.9 |
16 |
400 |
759.8 |
780.6 |
780.6 |
85.7 |
90.0 |
33.2 |
38.0 |
50.6 |
18 |
450 |
800.8 |
821.6 |
821.6 |
104.6 |
109.0 |
38.0 |
42.9 |
54.0 |
20 |
500 |
898.2 |
916.0 |
916.0 |
130.3 |
135.0 |
41.1 |
45.7 |
63.4 |
24 |
600 |
1090.9 |
1102.7 |
1102.7 |
151.4 |
156.0 |
50.6 |
54.0 |
75.0 |
Valve Size |
J |
K |
L |
P |
m |
M |
R |
Inch |
DN |
14 |
350 |
140 |
102 |
12 |
16 |
M20 |
23 |
460 |
16 |
400 |
197 |
140 |
18 |
16 |
M24 |
28 |
515 |
18 |
450 |
197 |
140 |
18 |
20 |
M24 |
28 |
565 |
20 |
500 |
197 |
140 |
18 |
20 |
M24 |
28 |
620 |
24 |
600 |
276 |
165 |
22 |
20 |
M27 |
31 |
725 |
|
|
| |
|
|
| |
|
|
